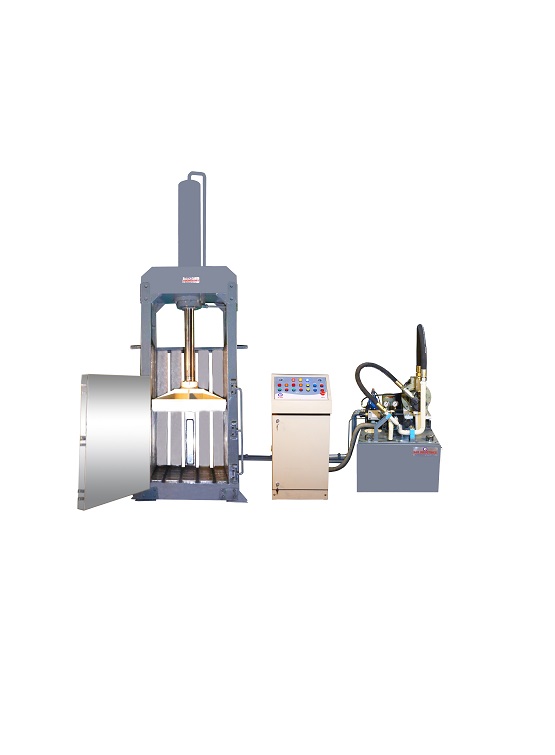

Jumbo Bags Bale Press
- Type : Four Pillar Hydraulic Press + Four Guide Bar.
- Frame Type : Three side closed and one side open able door with leaver arrangement
- Capacity : 100 ton onward up to 150ton
- Platen Size : 900mm X 1100mm(Slits on both axes)
- No of Cylender : 1 No of Main Cylender
- Day Light : 2000mm
- Day Off : 400mm
- Pressure Range : 0-350 kg/cm2
- Working Pressure : 150-200 kg/cm2
- Pusher : 1 NO. pusher to push the bale out in tact condition
- Electric Motor : 20hp / 25hp / 30hp
- Oil Reservoir : 400Ltr.
- Oil Required : 350Ltr.[Enclo-68/Harmony-68]
- Operation : By push buttons with electrical panel
- Valve : YUKEN/REXTROTH/HYDRANK(USA) Make
- Pump : VELJAN/KOOJAN
- Cylender Seals : Tecnolan(Italy)/Merkel(Germany) make
